Internals

Overview

Browsentic is four processes cooperating over loopback.

2 min read Edit this page on GitHub

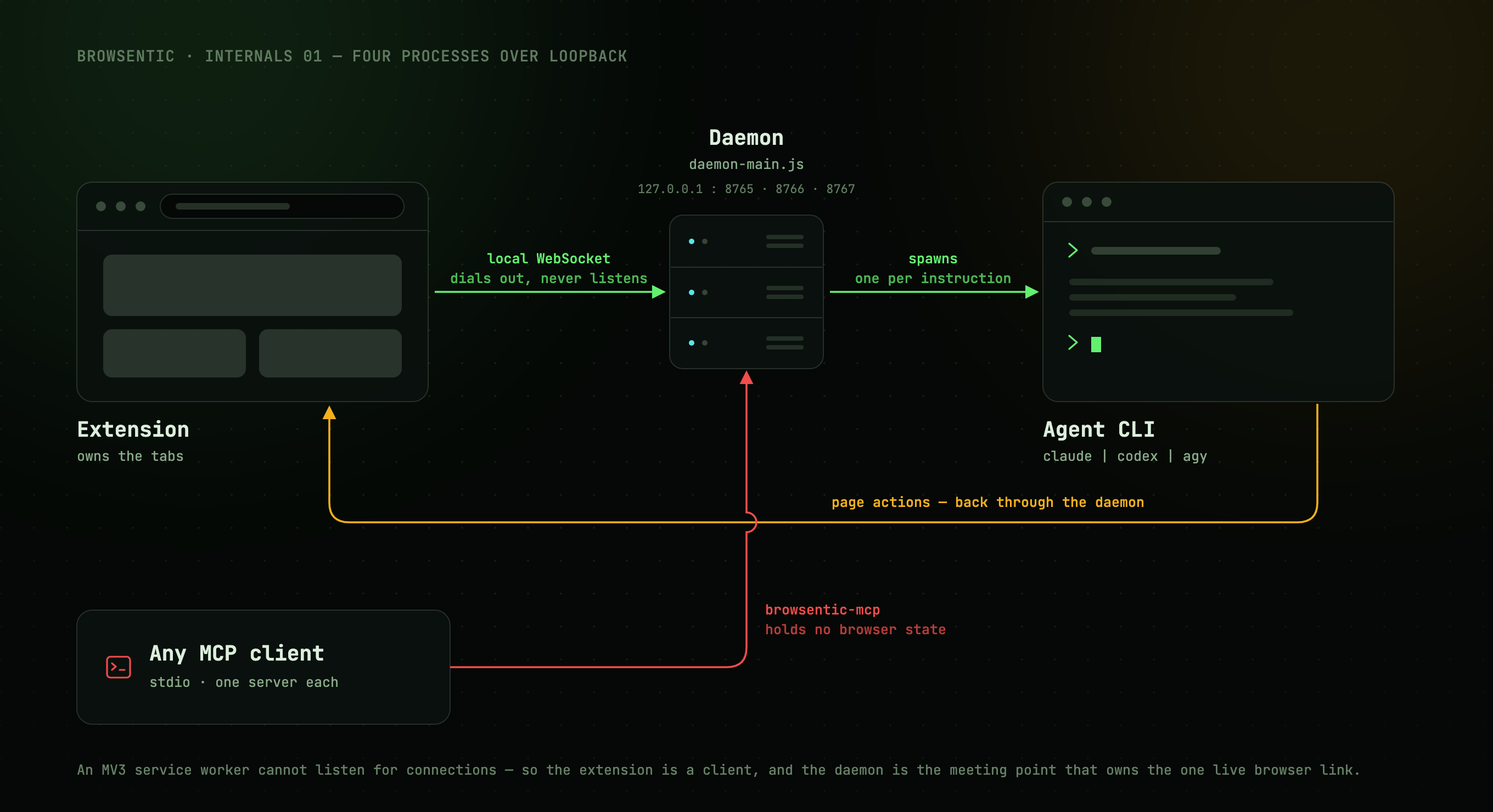

Four processes over loopback: the extension, the daemon, the spawned agent CLI, and any MCP client


Why there is a daemon at all

A Manifest V3 service worker cannot listen for connections. It can only dial out, and it is killed and revived at the browser's discretion. So the extension is a client, and something outside the browser has to be the meeting point.

That something is the daemon. It owns exactly one live browser link and fans it out to however many MCP clients want a turn:

You ──speak or type──> Extension ──local WebSocket──> Daemon ──spawns──> your agent CLI
                            ▲                                        (claude │ codex │ agy)
                            └──────────────── page actions ─────────────────────┘

Any MCP client ──stdio──> browsentic-mcp ──> the same daemon ──> the same browser

Everything binds to 127.0.0.1. Nothing listens on a public interface, and there is no cloud component.


The four processes

Process Started by Lives for Job
Extension The browser As long as the browser runs Owns the tabs. Runs the side panel, the popup, the background service worker and one content script per page
Daemon (daemon-main.js) Auto-spawned by the first CLI or MCP client that needs it Until 30 minutes idle with no extension and no control clients Owns the browser link, authorization, agent runs, screenshot writes, skill and site-map storage
MCP server (browsentic-mcp) The MCP client, over stdio The client's session Translates MCP tool calls into daemon control frames. One process per client
Agent (claude -p and friends) The daemon, per side-panel instruction One instruction Reasons about the instruction and calls page tools. Contained to Browsentic's own MCP server

The MCP server is deliberately thin: it holds no browser state. Kill it and the browser link is untouched, because the link belongs to the daemon.

The daemon has no start command. The first CLI or MCP client that needs it spawns it. That is also why a rebuild alone changes nothing while one is running — see Contributing.


The two paths through it

Everything in this section is one of two request shapes:

Path A An MCP client calls a tool. Thin, unconditional, no agent involved on Browsentic's side
Path B You type into the side panel. Goes through the intent funnel, then possibly spawns an agent CLI which loops back through Path A

Path B closing back onto Path A is the central trick: the agent the daemon spawns runs another browsentic-mcp, which connects back to the same daemon. That is what lets an agent run reuse the exact tool surface an external client gets while still being gated differently.


Next

Transport → — how anything gets to connect in the first place.
